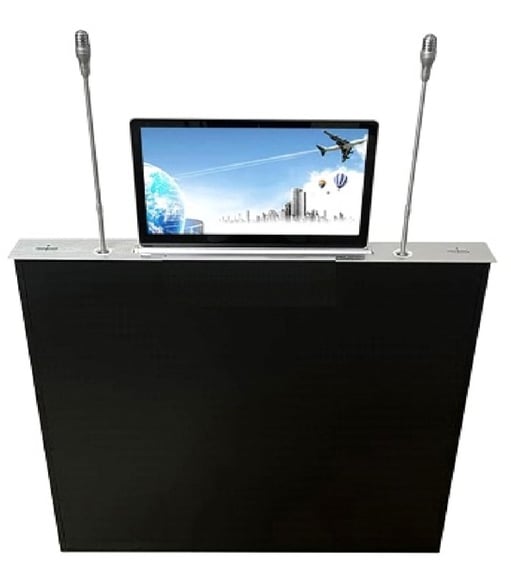

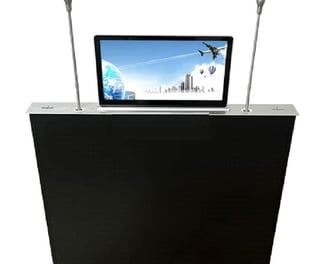

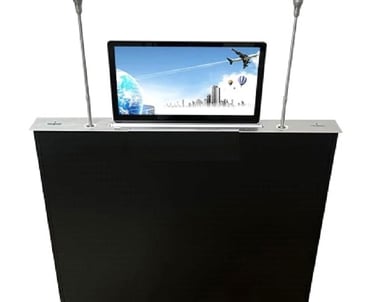

Retractable Monitor Lift With Screen With Left and Right motorized lift together

Display size:17.3''

Material: full aluminum alloy, included casing, spare part

Panel Size: 833*78mm

Box Size: 813*71*730mm

Cutout Size: 815*73mm

Panel Thickness: 1.8mm

Monitor size: 399*251*8mm

Screen Brand: BOE

Screen: 17.3 inch FHD Touch screen (ultra-narrrow frame)

LED type: IPS

Resolution ratio: 1920*1080P

Screen Brightness: 250cd/m2

Dynamic contrast: 800:1

Viewing Angle: 179 degree

Automatic Pitch Angle: 15 degree ( 20/30 if request)

Electrical Adjustable Angle: 0-30 degree

Color: aluminum black/silver

Panel button: UP/DOWN/STOP/Tilt/Back button/ Switch button/Power

On button/

Interface: HDMI+RS232 I/O+USB+XRL

Anti accident system for hand protection

English operation menu (set up screen brightness&color)

Built-in Motorized Conference System Goose Neck Microphone

screen + motorized mic lift up/down together, automatic straighten

microphone up function

With Microphone ON/OFF Button

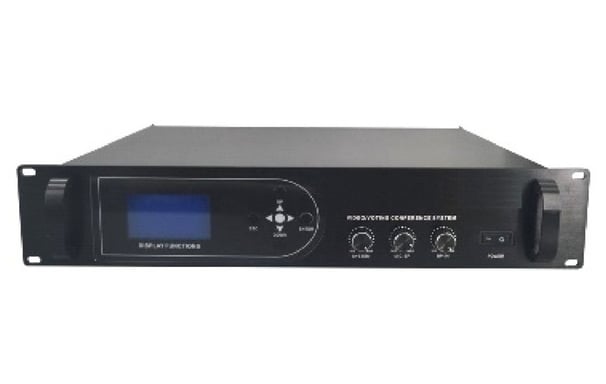

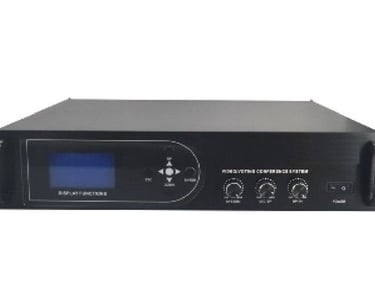

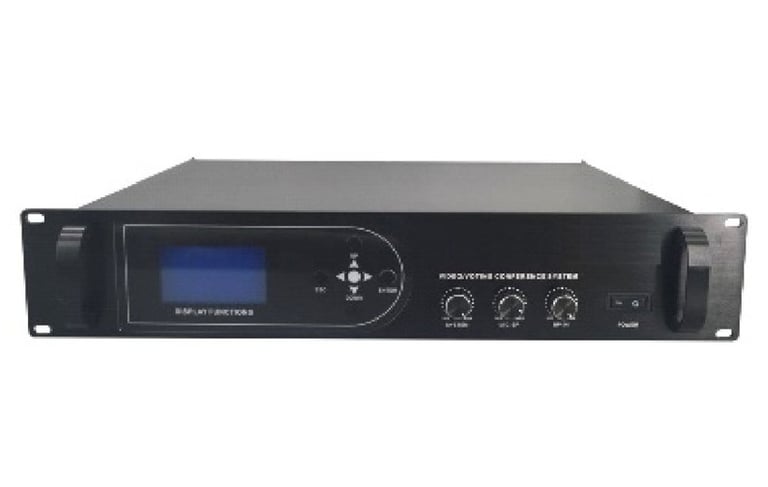

Digital Conference System

Digital Conference system, can control 60pcs MIC, 3 way Output-Series,

With parallel output, un-parallel output and record output, adjustable

button for master volume, background music, bass & treble of power

amplifier. Supporting a camera to achieve camera tracking, and

cooperating with the camera tracking host to achieve multi-channel

camera automatic tracking function.

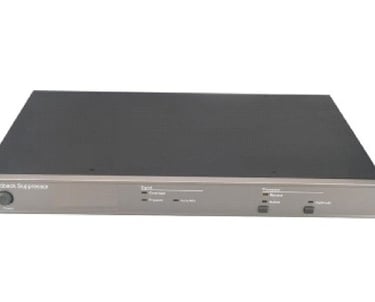

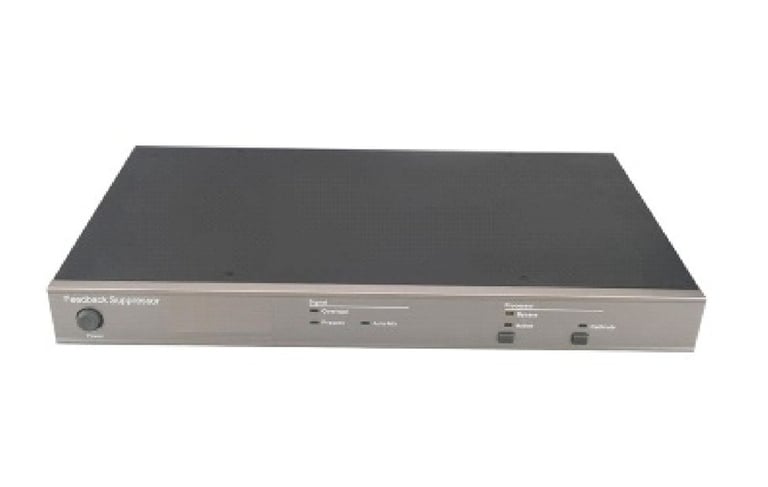

Feedback Suppressor

Ultra-wide frequency response circuit technology, no distortion, no metal

tail, strong suppression of echo.

Digital frequency shifting technology, super anti-howling, sound round

and stable, no floating and dry.

Super stable: built-in crystal oscillation, software algorithm, good

stability, little interference from temperature and outside.

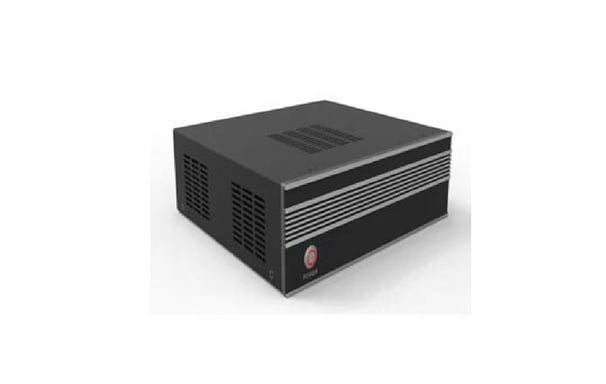

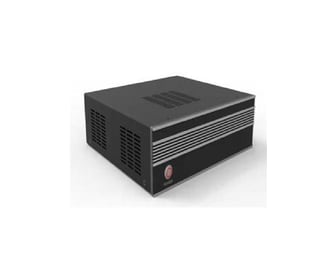

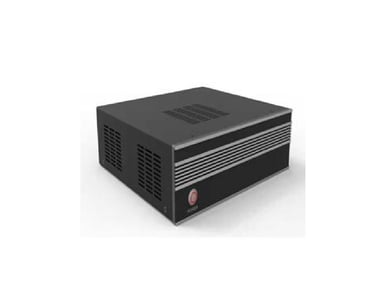

Paperless Conference System Terminal

Terminal for Paperless Conference System

CPU: Intel i5-3rd+ Memory: 4G DDR3+ SSD: 128G

Network card: (RJ45)+ Interface: 2*USB2.0, 2*USB3.0, 1*VGA,

1*HDMI, 1*RJ45, 1*DC, 1*MIC-IN, 1*LINE-OUT, 1*USB switch;

Operating system: Windows

Working power consumption: 12V DC

Dimensions: 218*200*65mm

English operation system, indivisual & all screen sharing, PPT

comment, voting, Viewing venue large screen, video sharing,

information sharing

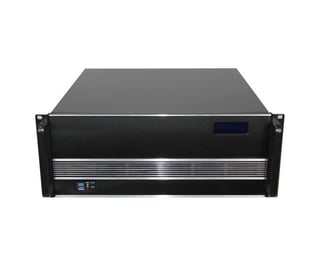

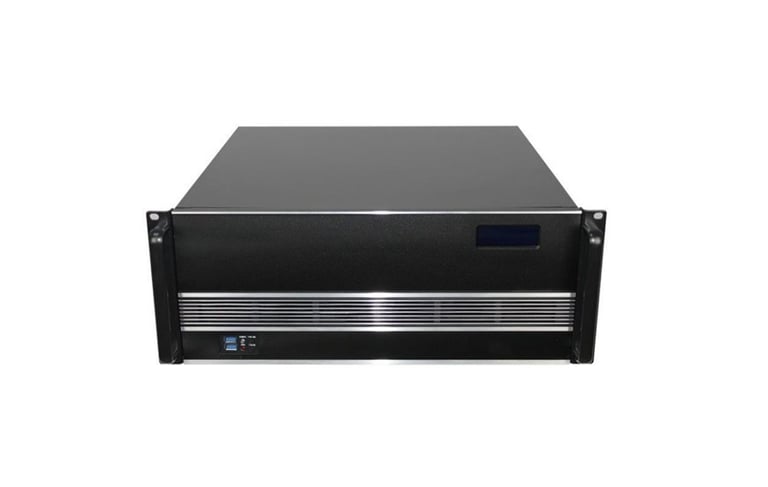

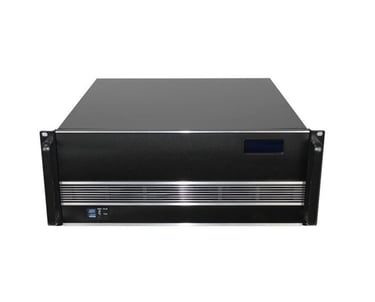

Paperless Conference Management Server

Paperless conference Management Server with software

1. Industrial-grade 4U chassis, 19-inch standard cabinet interface

2. Process: Anodizing

3. CPU: Intel I5

4. Memory specification: 8G DDR3

5. Hard disk: SSD 128G solid state + mechanical 1T

6. Operating system: support Windows, Linux and other multi-system

deployment

7. Maximum power consumption: 85W

8. Support wide voltage: 110-240V, 50/60Hz

9. Interface: 2*RJ45/8*USB/1*HDMI/1*VGA/1*AC/2*COM

10. Dimensions (W*H*D): 482 178 450 (mm)

English operation system, indivisual & all screen sharing, PPT

comment, voting, Viewing venue large screen, video sharing,

information sharing

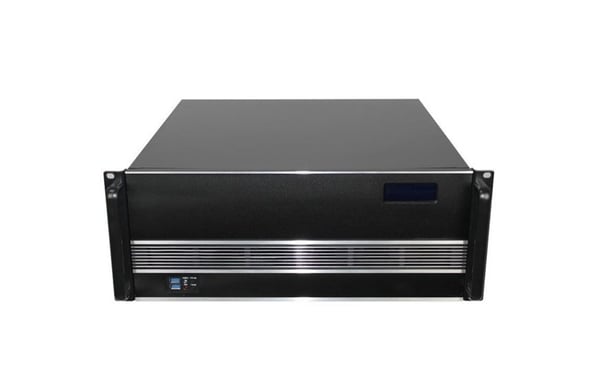

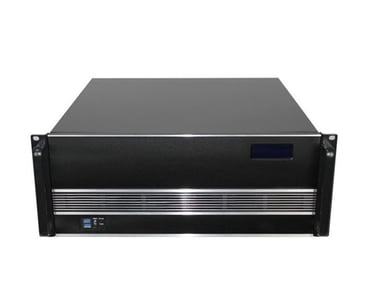

Large Screen Display Terminal

Large screen display terminal

CPU: Intel i5-4rd+ Memory: 8G DDR3+ SSD: 256G

PORTOFOLIO

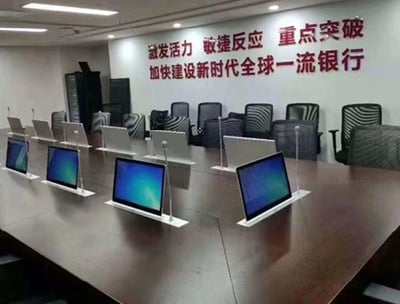

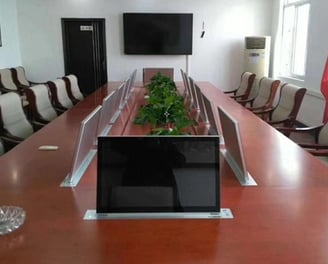

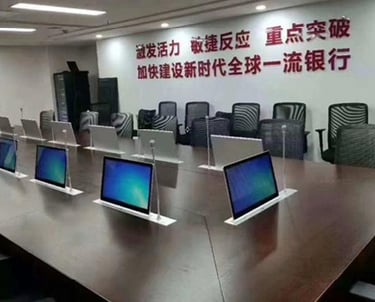

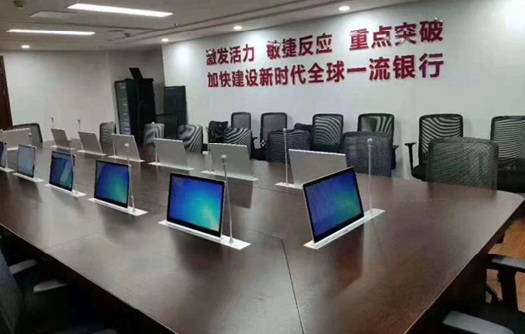

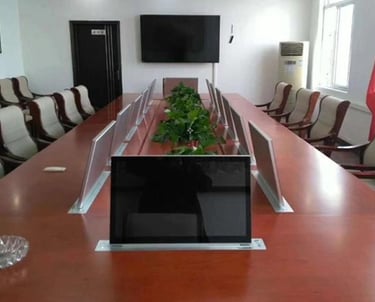

Monitor Lift Conference 17.3 Inch

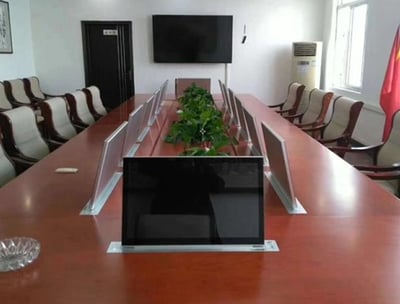

Bank Seminar Room

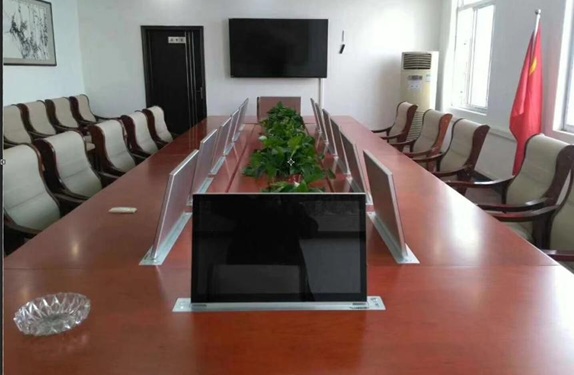

Monitor Lift Conference 18.5 Inch

Meeting Room

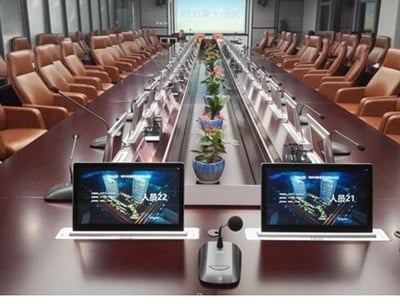

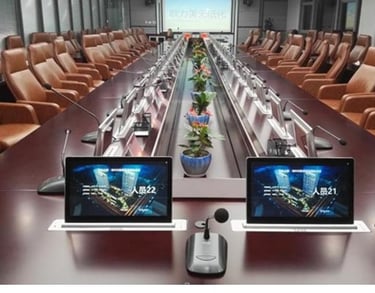

International Conference Room

Monitor Lift Conference 17.3 Inch

VIDEO

CLICK to see the full video
